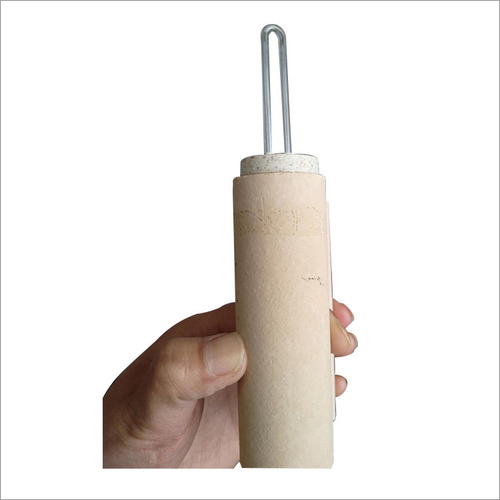

Fast Immersion Consumable Thermocouple For Steelmaking and Foundry

Fast Immersion Consumable Thermocouple For Steelmaking and Foundry

Product Details:

  • Usage Immerse the thermocouple in the metal solution
  • Weight 15-600 Grams (g)
  • Application it is used to measure the temperature of molten steel and high temperature of molten metal
  • Capacity 80 Pcs/min
  • Color white
  • Product Type mass production
  • Material polll paper tube
  • Supply Ability : 2000000 Piece Per Year

Price And Quantity

  • 3000 Piece

Product Specifications

  • Immerse the thermocouple in the metal solution
  • 0-1760 Celsius (oC)
  • 80 Pcs/min
  • 1.0 Gram per cubic meter (g/m3)
  • white
  • H ,O,S,Z type
  • 1.2 Megapascals (MPa )
  • mass production
  • length of protect tube customized
  • temperature
  • straight poll paper
  • +-1.5 degree
  • 0-1760 Celsius (oC)
  • +-3 Millimeter (mm)
  • 300-1500 Millimeter (mm)
  • 15-600 Grams (g)
  • 300-1500
  • Temperature Sensor
  • welding
  • it is used to measure the temperature of molten steel and high temperature of molten metal
  • polll paper tube

Trade Information

  • Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union
  • 2000000 Piece Per Year
  • 15-25 Days
  • Yes
  • Within a certain price range free samples are available
  • cartons
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • Features 1. The world standard thread is the "heart" of the thermocouple tip and even the entire thermometer. 2. Excellent accuracy. Tolerance within 1.5 degrees Celsius. 3. It can be handled safely. 4. Long service life, three to five times that of multi-immersion type; about 10 times that of multi-immersion type splash proofing, with high safety and splash resistance. 5. Range: 0 --- 1760 degrees Celsius. 6. Rapid response, measuring time no more than 3 seconds, low thermal inertia, easy operation and maintenance. 7. Standard length: 300mm, 400mm, 600mm, 900mm, 1200mm. The length has been changed according to your actual requirements. Paper tube outer diameter: 31mm, inner diameter: 18mm. 8. Type: Decentralized proof type and non-decentralized proof type Usage 1, To select the appropriate length of protective paper tube and temperature measuring gun according to the object and scope of the measurement 2, Attach the disposable thermocouple to the temperature measuring gun, make the pointer of the secondary instrument (or digital display) back to zero. Begin to measure. 3, It is recommended to insert the disposable thermocouple in to the molten steel at the depth of 300-400mm. Do not touch the furnace wall or scum. Bring up the temperature measuring gun immediately after the secondary instrument get results. The soak time of disposable thermocouple in molten steel should less than 5 seconds, otherwise the gun may be burned out. 4, Change the used thermocouple into a new one, and pause for a few minutes to get ready for the next measurement. Transport and storage Be careful when assembling and disassembling parts. Keep dry during transportation. Products should be put in boxes and stored in a warehouse with a relative humidity below 80%. Keep air circulation. The air should not contain harmful gases that may corrode products

Product Description

Fast Immersion Consumable Thermocouple For Steelmaking and Foundry

Description :

The fast immersion consumable thermocouple is mainly composed of a temperature probe and a large paper tube. Weld the positive and negative poles of the temperature measuring probe to the compensation wire, which is embedded in a support frame covered by a small paper tube. The hot wire is supported and protected by quartz. The temperature measuring probe is covered by a cover to prevent residues. All components are placed in the tip of the thermocouple and bonded into a whole with refractory filler. Therefore, fast thermocouples can only be used once. The disposable thermocouple is used to measure the temperature of molten steel and high-temperature molten metal. Based on the thermoelectric effect of metal, it works according to the temperature difference between its two sides.
